2. Surface Grinding Machines

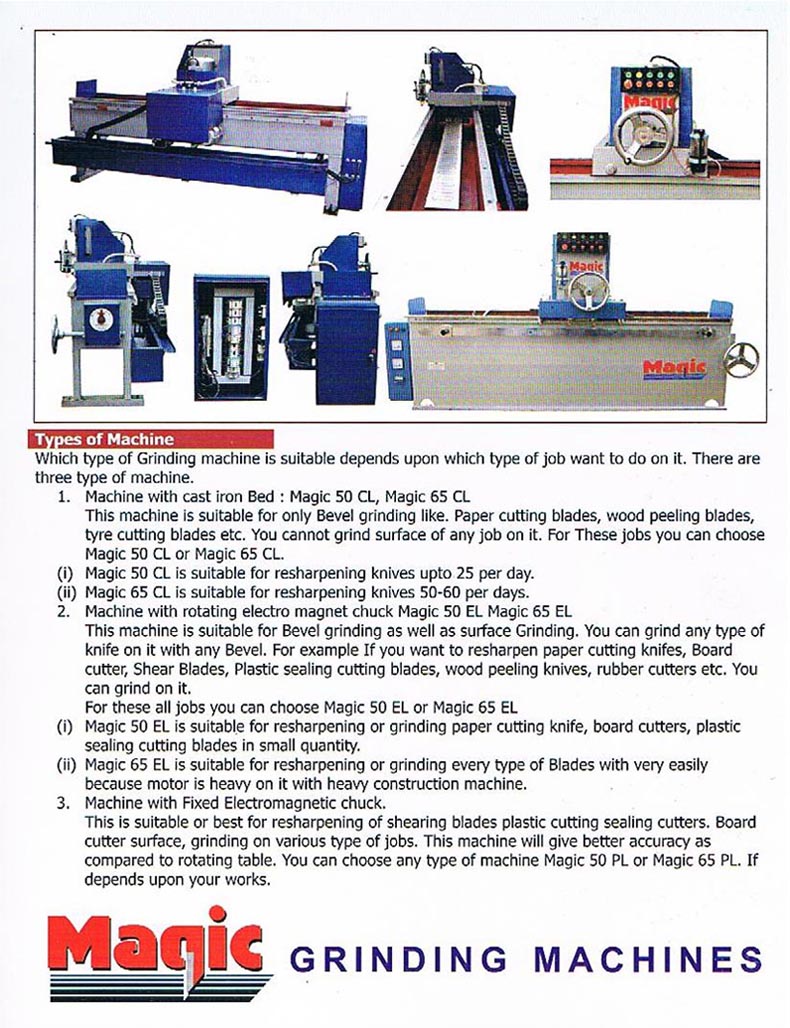

      1. “ MAGIC “ Surface grinding machines & knife grinding machines suitable for various industries

1. Technical Specifications

   1. Machine belt- Fabricated heavy duty constructional designs
   2. Guide ways- Hardened and ground HC, HCR Steel sails
   3. Grinding head carriage- Made from C.I. grounded casting of heavy duty for vibration free work.
   4. Machine tablet -Stationary as well as moving optional for electromagnet or mechanical clamping designs
   5. Segmental head- Dynamically balanced segment head 200mm to 400 diameter
   6. Coolant device separate with tank
   7. Control panel- Separate control cabinet with original siemens or L&T switch geras
   8. Gear box- Hardened and grinding gears and suitable alloy steel seal
   9. Bearings- SKF,NBC, branded bearings used
   10. Drag chain- Drag chain is used to converge cables coolant pipes

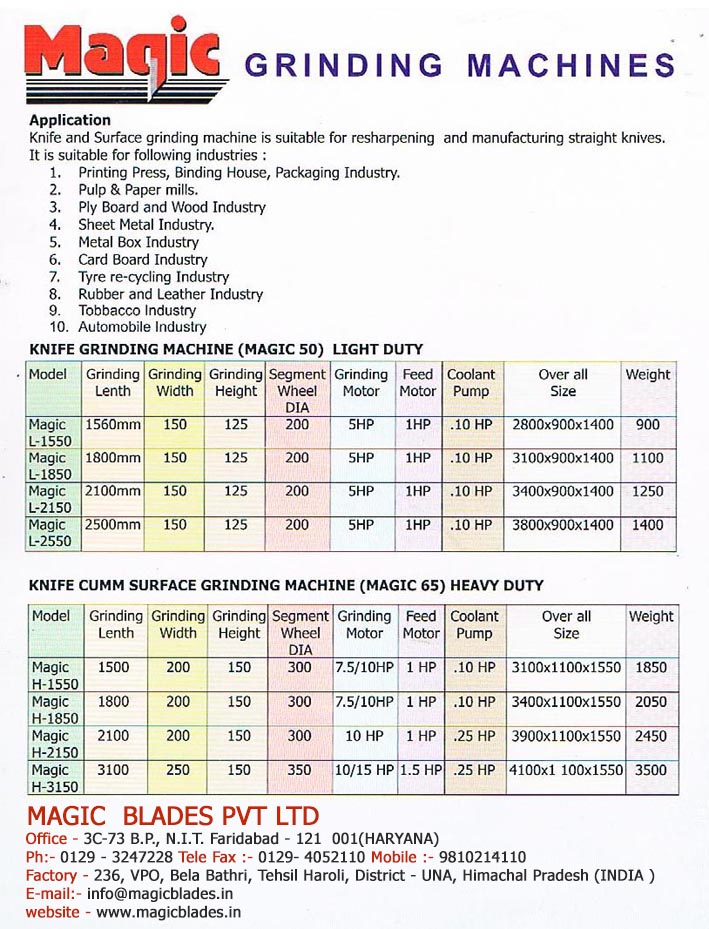

Sizes           knife grinding machine           Light duty

Model	Grinding with Capacity	Grinding Width	Height	Segment Wheel	Grinding Hand Motor	Fuel Motor	Coolant Pump	Over all Size	Weight
Magic L-1550	1560mm	150	125	200	5HP	1HP	.1 HP	2800 x 900 x1400	900
Magic L-1850	1800mm	150	125	200	5 HP	1HP	.1 HP	3100 x 900x1400	1100
Magic L -2150	2100mm	150	125	200	5HP	1HP	.1 HP	3400x900x1400	1250
Magic L-2450	2500mm	150	125	200	5 HP	1HP	.1 HP	3800x900x1900	1400

KNIFE CUTTER SURFACE GRINDING MACHINE HEAVY DUTY

Magic H-1550	1500	200	150	300	7.5/10HP	1 HP	.1 HP	3100x1100x1550	1850
H-1850	1800	200	150	300	7.5/10HP	1 HP	.1 HP	3400x1100x1550	2050
H-2150	2100	200	150	300	10 HP	1 HP	.25 HP	3900x1100x1550	2450
H-2550	2500	250	150	350	10 HP	1.5 HP	.25 HP	4100x1100x1550	2800
H-3150	3100	250	150	350	10/15 HP	1.5 HP	.25 HP	4100x1100x1550	3500
